Tungsten heating shield, tungsten shield, tungsten cup
Application of vertical cylindrical vacuum furnace .
Working temperature :1500-2600 DC
Hot-zone design

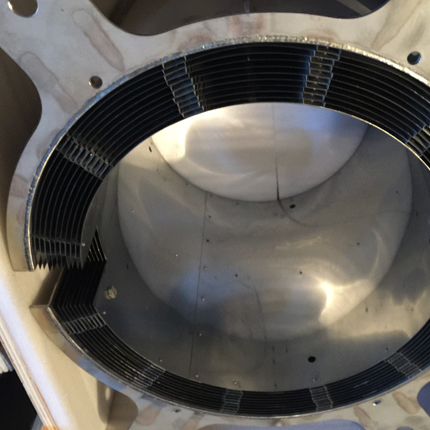

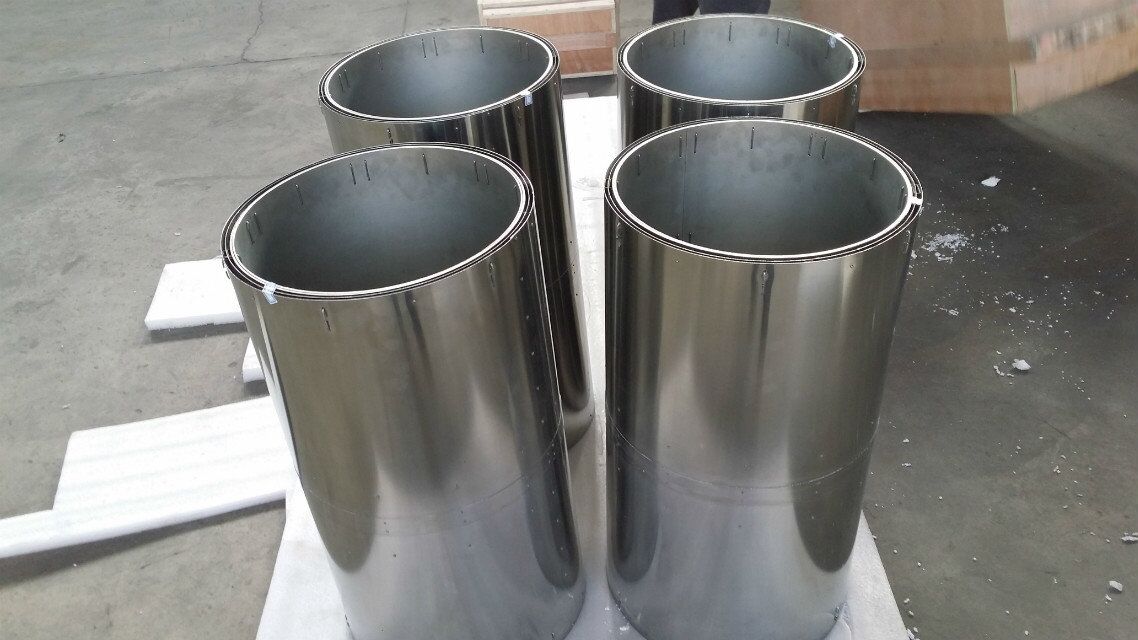

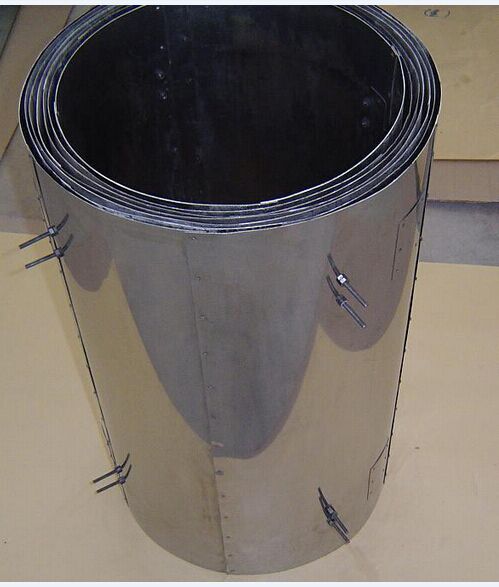

Tungsten heat shield ,
tungsten cup is very good materials for high temperature Hot-Zone construction . It works well at 1500-2200DC.. The heat shielding is make up of multiple layers of Tungsten
sheet with spaces between each layer. Generally , a heat shielding often consists of 3-6 layers of tungsten sheet backed by stainless steel sheet . For higher operation temperatures, the number of tungsten layers is increased as well as the thickness of each layer.
Application : cylindrical furnace, chamber furnace
Heat shield made of TZM ,MoLa and W. are available
Available materials for furnace parts
● 99.95% pure tungsten and molybdenum
● MoLa (La2O3from 0.3% to 1.2%)
● TZM (titanium-zirconium-molybdenum)
● Tantalum
Our furnace parts range
● Sheet, rod, wire and tubing
● Heating elements made in form of rod, sheet, ribbon, wire and mesh
● Heat shield panels
● Carriers, boats, trays and crucibles
● Rails and racks
● Parts for supporting, positioning and mounting
● Screw, nut and washer
● Pins, rivets, hooks and other spare parts
● Special form made to order
