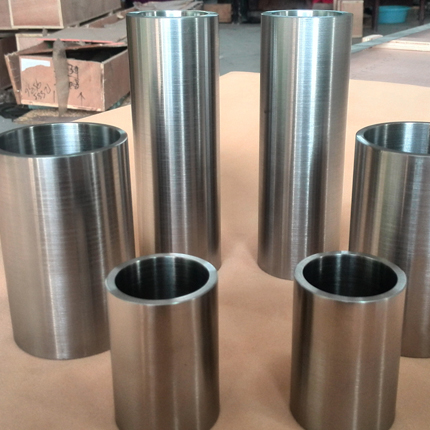

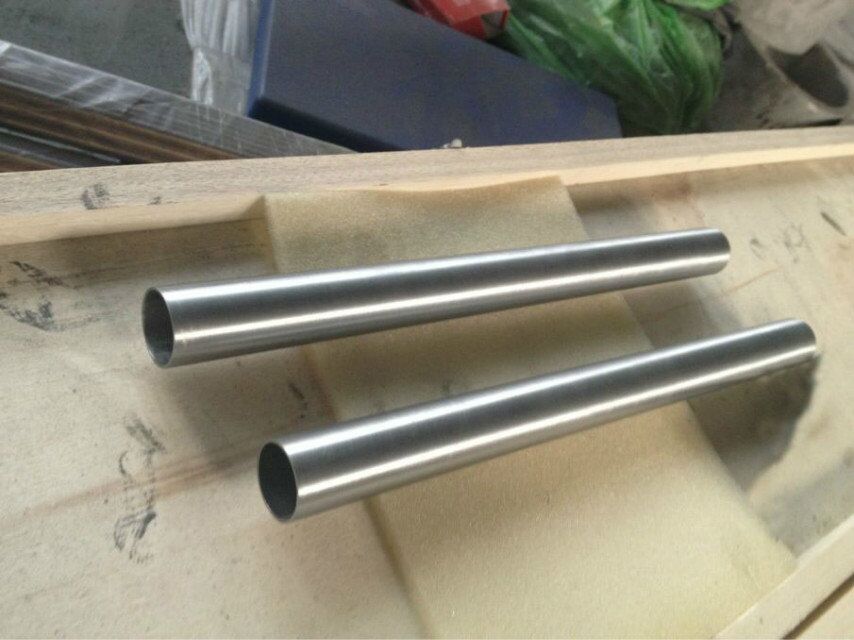

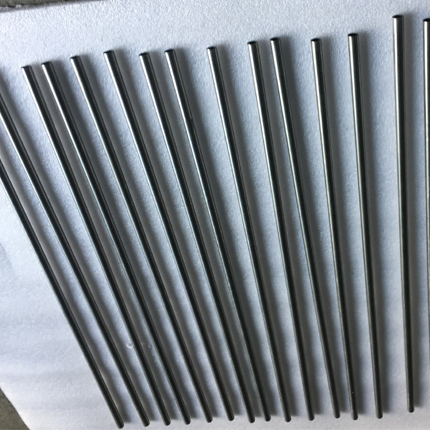

Molybdenum pipe or molybdenum tube
Specifications
Grade: Mo1
Purity :> =99.95%, Density: 10.2 g/cm3
Dimensions and tolerance (According to clients’requirements):
Forged Molybdenum Tube/Pipe, Density >=9.9g/cm3
Outer Diameter 4-150mm*Length <=1500mm*Wall Thickness >=1.0mm
Sintered Molybdenum Tube/Pipe, Density>=9.7g/cm3
Outer Diameter 100-500mm* Length <=1500mm* Wall Thickness >=5.0mm
Melting Point: 2610 C, Boiling Point: 5560 C
Product Feature: High melting point, High-density, high temperature oxidation resistance, long service life, resistance to corrosion.
Molybdenum tube by extruding, mechanical machining or welding from sintered and drilled molybdenum blank tube or cold/hot rolled molybdenum sheet and plate.
Our molybdenum tubes are manufactured from molybdenum powders by powder mixing, pressing, sintering to finished size, according to ASTM or customers tailored specifications. Purity of our molybdenum tube reaches 99.95% minimum, and density could be near to academic 10.2 g/cm3because HIP is employed in production for the purpose of increasing density.
Molybdenum tube and cylinder for high temperature furnace heat shield are available, and in addition we also supply rotary sputtering target for thin film deposition in flat panel display and solar cells industry
Molybdenum alloy Tube
Pure molybdenum
TZM
Mo-La
Tungsten tube
